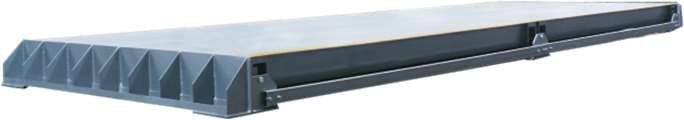

Modular Weighbridge

Product Features

• Customized orthotropic beams designed precisely for the purpose of truck scale application. These orthotropic beams are a global norm today and world-leaders like Mettler-Toledo are aggressively using these designs across Europe and America.
• The structure incorporates epoxy based paint technology with dual paint coats to give a superior finish and long life to the structure to give excellent results in the long run.
• Designing superior structures with precise designing using latest CAD and CAE Procedures .
• Tested using actual industrial loads ensure a robust product.
• Heavy Duty fabrication using branded high UTS Steel.
• Non Destructive Test methods used to test the strength of each fabricated structure in actual loaded condition.

Modular Weighbridge (Foundation-less) supplied with bottom frame and prefabricated ramps. It helps in cost- effective transportation and re-installation, needs no foundation or pit, just needs a hard and plain surface to rest load cell plates. It can be installed in a few hours compare to taking a couple of days of installing a surface or pit mounted weighbridge. It is suitable for temporary sites.

Silent Features of Modular Weighbridge

• Quick & economical bolt-down installation with simple foundation
• Fully Welded Platform Structure
• No special foundation required hence reduces civil engineering cost
• Designed for heavy weightment & harsh environment
• Weighing Capacity: 200 Ton
• Platform Length: 6 Mtrs to 24 Mtrs
• Platform Width: 3 Mtrs
• Modules: 2/4/6/8 or more
• Can be placed directly in the wheel path of vehicle. Rugged structure, but still be implemented flexibly.

RAMPS: In the case of surface mounted weighbridges, approach ramps are required which can be of concrete or steel structure. Remember that ramps take the brute force of being hit by a vehicle as it mounts the ramp. Concrete can offer longevity, while steel is ideal if the weighbridge is likely to be moved.
